NEW
Dometic
FreshLight Air Conditioner & Rooflight
|
|

|
FreshLight,
the innovative new product from Dometic offers the
unique combination of a rooflight and a high performance
roof air conditioner. Now camping enthusiasts can
keep cool and comfortable without sacrificing natural
light. Dometic FreshLight is a patent-pending solution
developed in conjunction with Dometic Seitz. As well
as incorporating a
window to let daylight inside the caravan or motorhome,
it has a soft light for evening ambience built in.
It creates a comfortable
cooling breeze at an efficient 2200 watts in capacity
whilst in cooler months, it will provide heat with
its powerful 2800-watt heat pump. FreshLight also
incorporates an active ventilation system. In addition,
Dometic FreshLight features an individually adjustable
air diffuser system to filter out dust particles and
an automatic blower control that is exceptionally
quiet in operation. Other features include a timer
and night-time mode as well as a pleated blind for
the window. It comes complete with remote control
for ease of use. Despite the high-tech functionality,
Dometic FreshLight does not compromise on aesthetics.
The flat and aerodynamic design will have virtually
no effect on the vehicle’s road behaviour. Its
ability to adjust to any roof thickness between 30
and 70 millimetres ensures a neat installation for
all types of vehicles. The new-generation roof air
conditioner was principally designed for stationary
use on a 230-volt mains supply, but it can also be
fitted for mobile use by adding a matching DC kit.
Dometic FreshLight is designed for vehicles up to
seven metres
long and up to 28 cubic metres in capacity.
Included:
Roof air conditioner, remote control, air distributor
unit with LED illumination, fixing and installation
materials, installation and operating instructions.
- Rooflight
with single-pleated blind
- Active
ventilation system
- Thermostat
temperature control
- Control
panel with integrated, dimmable LED lights
- Energy-efficient
heat pump system for cooling and heating
- Flat,
aerodynamic design
- Perfect
installation results, unit adjusts to the roof
thickness
- Individual
air flow regulation with automatic blower control
- Temperature
and blower speed are conveniently set by remote
control
- For
stationary operation (230 volts AC)
- Otional
DC-Kit-or DC-Kit-3 also available for mobile operation
on 12 volts DC
- Cooling
capacity (kW) 2.1
- Capacity
(BTU/h) 7000
- Power
(V/Hz) 230 / 50
- Dimensions
(HxWxD) (mm) 210 x 758 x 1105 mm
- Net
weight (kg) 42
- Consumption,
cooling mode (W) 950
- Consumption,
heating mode (W) 1200
£1849.99
|
Dometic
CA1000 -
the air conditioner that fits any caravan or
motorhome
|
|

|
The
powerful compressor system is quick and easy to install
– in an existing or newly cut roof opening.
Due to its low starting current, the CA 1000 works
simply everywhere and without fail, even on campsites
with low electrical circuit protection.
- Super
compact, aerodynamic design, low weight
- Perfect
installation results, air conditioner adjusts
to the roof thickness
- Energy-saving,
pleasantly quiet running
- Two
blower speeds, manual or automatic operation
- Temperature
and blower speed set by control panel
- Designed
for stationary operation - 230V
Type |
Roof |
Cooling
capacity (kW) |
1.0 |
Full
Load, cooling (A) |
2.3 |
Capacity
(BTU/h) |
3400 |
Power
(V/Hz) |
230/50 |
Refrigerant |
R134a |
Dimensions
LxWxH (mm) |
690x565x199 |
Dimensions
(roof opening) (mm) |
400-434
x400-435 |
Net
weight (kg) |
22 |
Fuse
(A) |
3 |
Roof
thickess (mm) |
35-50 |
£1109.99
|
Dometic
B1100 S - air
conditioner for perfect climate wherever you are
|
|

|
The
innovative interior technology allows better air distribution
and guarantees a quiet operation at the same time.
Cooling capacity of 1.0 kW. High performance and low
power consumption.
The
thermostatic control guarantees that you enjoy the
temperature you set. The low weight of only 29 kg
keeps your fuel expenses low.
-
Aerodynamic
design for quiet operation and easy installation
0.8 kW heating element as standard
-
Environment-friendly:
free of CFCs and HCFCs
-
Robust
injection moulded construction
-
Tilt-insensitive
up to 10 degrees
-
For
roofs from 25 to 45 mm thickness, with optional
adapter up to 75 mm
Type |
Roof |
Cooling
capacity (kW) |
1.0 |
Full
Load, cooling (A) |
2.1 |
Capacity
(BTU/h) |
3400 |
Power
(V/Hz) |
230/50 |
Refrigerant |
R407c |
Dimensions
LxWxH (mm) |
980x650x235 |
Dimensions
(roof opening) (mm) |
400
x 400 |
Net
weight (kg) |
29 |
Circuit
(A/sec) |
11/0.15 |
Consumption,
cooling mode (W) |
500 |
Consumption,
heating mode (W) |
800 |
Fan
speed (kW) |
2.0 |
Fuse
(A) |
3 |
Roof
thickess (mm) |
25-45 |
£1119.99
|
Dometic
B1500 S - roof
mount air conditioner for vehicles up to 6m
|
|

|
One
of Europe’s favourite AirConditioners has been
further improved: The innovative interior technology
allows better air distribution and guarantees a quiet
operation at the same time.
The
aerodynamic and modern design guarantees quiet operation
and fast installation.
-
Suitable
for most European camp grounds (fuse size 4 Ampere).
-
2-speed
fan for comfortable air distribution in every
situation
-
Thermostatic
temperature control and 0.8 kW heating element
are integrated as standard
-
Free
of CFCs and HCFCs
-
Tilt-insensitive
up to 10 degrees
-
For
roofs from 25 to 45 mm thickness, with optional
adapter up to 75 mm
-
Cleanable
air filters
-
Compressor
type: rotary
Type |
Roof |
Cooling
capacity (kW) |
1.5 |
Full
Load, cooling (A) |
2.9 |
Capacity
(BTU/h) |
5200 |
Power
(V/Hz) |
230/50 |
Refrigerant |
R407c |
Dimensions
LxWxH (mm) |
980x650x235 |
Dimensions
(roof opening) (mm) |
400
x 400 |
Net
weight (kg) |
30 |
Circuit
(A/sec) |
14/0.15 |
Consumption,
cooling mode (W) |
650 |
Consumption,
heating mode (W) |
800 |
Fan
speed (kW) |
2.0 |
Fuse
(A) |
4 |
Roof
thickess (mm) |
25-45 |
£1149.99
|
Dometic
B1600 Plus - roof mount air con + lights, vehicles
up to 6m
|
|


|
Proven

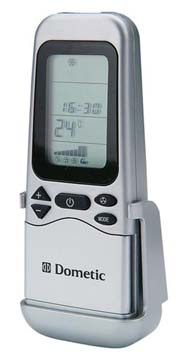

air conditioner with new remote control
The new Blizzard 1600PLUS offers the same performance
as the proven predecessor B 1600 but is equipped with
an easy-to-use remote control and integrated lighting.
It
is suited for vehicles up to a length of six metres
and combines a cooling capacity of 1.5 kW with a heating
element of 0.8 kW.
- Automatic
air diffuser with 2-speed fan offers highest flexibility
- Suitable
for most European camp grounds (fuse size 4 Ampere)
- Quiet
operation and quick installation With thermostatic
temperature control
- Free
of CFCs and HCFCs Tilt-insensitive up to 10 degrees
- For
roofs from 30 to 80 mm thickness
- Compressor
type: rotary
- Recommended
generators: Dometic T 2500 H, Dometic TEC 29 or
Dometic TEC
Type |
Roof |
Cooling
capacity (kW) |
1.5 |
Full
Load, cooling (A) |
2.9 |
Capacity
(BTU/h) |
5200 |
Power
(V/Hz) |
230/50 |
Refrigerant |
R407c |
Dimensions
LxWxH (mm) |
980x650x235 |
Dimensions
(roof opening) (mm) |
400
x 400 |
Net
weight (kg) |
30 |
Circuit
(A/sec) |
14/0.15 |
Consumption,
cooling mode (W) |
650 |
Consumption,
heating mode (W) |
800 |
Fan
speed (kW) |
2.0 |
Fuse
(A) |
4 |
Roof
thickess (mm) |
30-80 |
£1339.99
|
Dometic
B2200 - roof mount air conditioner for vehicles
up to 7m
|
|


|
With
new air distribution box.
Combines powerful performance with minimum vibration
and noise levels. The new air diffuser and remote
control allow comfortable adjustment of the air flow:
You can choose between front or back distribution
or both at the same time.
New
air distribution box offers ultimate flexibility.
Integrated illumination. Comfortable adjustment of
fan speed with remote control.
- Electronic
temperature control for roofs from 30 to 80 mm
thickness
- Tilt-insensitive
up to 10 degrees.
- Robust
injection-moulded construction.
- Environment-friendly:
free of CFCs and HCFCs.
- Recommended
generators: Dometic T 2500 H, Dometic TEC 29 or
Dometic TEC 30
Type |
Roof |
Cooling
capacity (kW) |
2.05 |
Full
Load, cooling (A) |
4 |
Capacity
(BTU/h) |
7000 |
Power
(V/Hz) |
230/50 |
Refrigerant |
R407c |
Dimensions
LxWxH (mm) |
980x650x235 |
Dimensions
(roof opening) (mm) |
400
x 400 |
Net
weight (kg) |
34 |
Circuit
(A/sec) |
18/0.15 |
Consumption,
cooling mode (W) |
910 |
Consumption,
heating mode (W) |
1200 |
Fan
speed (kW) |
2.0 |
Fuse
(A) |
5 |
Roof
thickess (mm) |
30-80 |
£1499.99
|
Dometic
B2600 - roof mount air conditioner for vehicles
up to 8m
|
|

|
Air
conditioner with efficient heat pump technology. From
a technical point of view, the B 2600 offers a special
feature as it is the very first Dometic roof air conditioner
to be fitted with an energy efficient
heat pump system. That means the B 2600 provides extremely
powerful cooling and heating in particular, despite
using less energy.
The
innovative Dometic air distribution allows you to
direct the flow of air and the amount as and when
you need it. All the major features can be controlled
using the multi-functional remote control. Scope of
delivery: roof air conditioner, remote control, air
diffuser unit, mounting frame, fixing materials, installation
and operating instructions
-
Heat
pump technology
-
For
230-volt AC stationary operation
-
Control
panel with integrated lighting
-
Remote
control
-
Thermostat
temperature control
Type |
Roof |
Cooling
capacity (kW) |
2.5 |
Capacity
(BTU/h) |
8500 |
Power
(V/Hz) |
230/50 |
Refrigerant |
R407c |
Dimensions
LxWxH (mm) |
980x650x235 |
Dimensions
(roof opening) (mm) |
400
x 400 |
Net
weight (kg) |
40.5 |
Consumption,
cooling mode (W) |
1200 |
Consumption,
heating mode (W) |
1350 |
Fuse
(A) |
6
A delay fuse |
Roof
thickess (mm) |
30-80 |
£1749.99
|
Dometic
B3200 - roof mount air con + heating function, vehicles
8m+
|
|
|
Power
for professional use. Due to its powerful performance
this air conditioner is perfect for professionally
used vehicles. Enjoy reliable and powerful heating
and cooling even in adverse conditions such as frequent
air changes.
The
new interior design helps to save valuable space.
Different air outlet positions possible: front and/or
back air distribution.
- New
space-saving interior design
- Amazing
cooling capacity of 3.2 kW
- Highest
flexibility with three fan speeds
- Powerful
1.6 kW heating element
- Suitable
for all European campsites due to fuse size of
10 ampere
- Recommended
generators: TEC 29, TEC 30, T 40
Type |
Roof |
Cooling
capacity (kW) |
3.2 |
Full
Load, cooling (A) |
6.3 |
Capacity
(BTU/h) |
10900 |
Power
(V/Hz) |
230/50 |
Refrigerant |
R407c |
Dimensions
LxWxH (mm) |
1025x737x245 |
Dimensions
(roof opening) (mm) |
355
x 355 |
Dimensions
(inside box)(mm) |
559x508x64 |
Net
weight (kg) |
45 |
Circuit
(A/sec) |
29/0.15 |
Consumption,
cooling mode (W) |
1350 |
Consumption,
heating mode (W) |
1600 |
Fan
speed |
3 |
Roof
thickess (mm) |
110 |
£1349.99
|
Dometic
Air Diffuser for B3200
|
|
|
£119.99
|
Dometic
DC Kit 1 - for
12-volt mobile operation
|
|
|
Standard
DC Kit for CA1000
Inverter
(sine-wave-like output voltage, with mains priority
circuit), remote control including 5m control cable,
2 battery cables 16mm (1.5m long), 230 volt connection
cable, charging current distributor with relay.
Dimensions
(H x W X D): 77 x 210 x 300 (inverter)
Current consumption (A): 30-40
Recommended generator capacity: >_75
Recommended tot. battery capacity (Ah): >_80
Continuous output (w): 1000
£395
|
Dometic
DC Kit 2 - for
12-volt mobile operation
|
|
|
Standard
DC Kit for the B1600 Plus, B2200
Inverter
(sine-wave-like output voltage, with mains priority
circuit), remote control including 5m control cable,
2 battery cables 25mm (1.5m long), 230 volt connection
cable, charging current distributor with relay.
Dimensions
(H x W X D): 77 x 210 x 410 (inverter)
Current consumption (A): 100-500
Recommended generator capacity: >_150
Recommended tot. battery capacity (Ah): >_250
Continuous output (w): 1600
£545
|
Dometic
DC Kit 3 - deluxe
kit for 12-volt mobile operation
|
|
|
Standard
DC Kit for the CA1000, B1600 Plus, B2200.
Sinewave
inverter, remote control including 7.5m control cable,
mains priority circuit with 2 power sockets, 2 battery
cables 35mm (1.5m long),22 pieces of 230 volt connection
cable, charging current distributor with relay.
Dimensions
(H x W X D): 88x 191 x 415(inverter)
Current consumption (A): 81-113
Recommended generator capacity: >_120
Recommended tot. battery capacity (Ah): >_200
Continuous output (w): 1500
£1099
|
|
|
