Heaters
- Blown
Air Heaters | Convection Heaters | Catalytic Heaters
Propex
Blown Air Heaters - HS2000 & HS2800
The
HS2000 and the HS2800 heaters by Propex are automatic, thermostatically
controlled blown air heating systems
fuelled by propane or butane gas. The Heatsource range is
designed for a variety of automotive and marine applications
as a source of heat totally independent of the engine.
Download the Propex
Heatsource A3 Brochure (HS2000 & HS2800) in pdf
Applications
Propex Heatsource blown air systems are used in many applications
throughout the world, these include Motorhomes, Caravans,
Boats, Cranes, Horseboxes and Mobile Workshops etc. Both
12 and 24 volt versions are available.
Control
Both the HS2000 and HS2800 are supplied as standard with
a solid state electronic thermostat which automatically
switches the unit on and off to maintain the desired temperature.
When the room temperature drops below the selected level,
the Heatsource will automatically ignite and run until the
cabin
reaches the selected temperature. The thermostat is an easy
to fit surface mount design and integrates with the new
electronics fitted to the HS2000 and HS2800 heaters. An
easy to operate panel mounted digital timer/thermostat specifically
designed for heatsource, is also available. Unlike some
heaters, there is minimal electric current consumption during
ignition so cycling the heatsource on and off does not have
the effect of additional battery drain.
Efficiency
With forced air combustion and the Propex two stage
stainless steel heat-exchanger, the HS2000 and HS2800 are
a clean and highly efficient way to heat your vehicle or
boat. Air for combustion is taken from outside and passed
into the combustion chamber having been mixed with gas during
three aeration stages, it is ignited automatically and heats
up the large surface area of the heat-exchanger. The Heatsource
units
are totally room sealed and exhaust all products of combustion
externally through the neat 22mm i.d. stainless steels flue
pipe. To add to the efficiency, cabin air is normally re-circulated
in preference to using cold air from outside. The HS series
heaters are also very efficient on electrical current consumption,
the
high quality motor/fan combination and innovative current
reducing electronics, both of which have been improved in
the latest versions, means that even the larger HS2800 draws
less than 2 amps during normal operation.
Quiet
Operation
Propex heaters are designed to be quiet in operation without
compromising air throughput and heat output. There will
always be some air noise from a system that produces a healthy
throughput of air, however, by using high quality balanced
fans and smooth enclosed motors with ball race bearings,
noise is kept to a minimum. Noise is also unaffected by
high voltage, a common occurrence with battery charges,
solar panels etc permanently wired. The micro-processor
electronics regulates the motor voltage so that the fan
speed does not alter from 10 to 15 volts.
Safety
Heatsource blown air heaters conform to the latest European
standards for both the appliance and the electronics and
during the rigorous testing the focus is very much on safety.
The heaters also have to comply with an enhanced version
of the Electro Mechanical Compatibility Directive to ensure
they do not interfere with other electronics and that they
are immune from interference by other electronics. The intelligent
electronics are continuously monitoring the operation of
the heater to make sure everything is operating correctly
and safely. This includes monitoring of the flame, case
temperature, combustion airflow, gas solenoid valve and
voltage. Should any of these stray outside of the predetermined
levels, the heater will be switched off and the red light
on the thermostat will indicate a fault by flashing a certain
number of times.
Installation
Both the HS2000 and HS2800 are supplied with complete fitting
kits to suit either vehicle or marine applications. In vehicles
and caravans the unit is usually mounted in a bed-box or
cupboard, flue downwards through the floor and out to the
side of the vehicle using flexible stainless ducting. These
ducts (22mm i.d. for the HS2000 and 26mm i.d. for the HS2800)
are supplied as standard in lengths of 750mm for vehicles
and 1 metre for boats. The ends are finished with neat stainless
steel end-caps which comply with EN624. The heat is ducted
to one or more outlets through tough highly flexible 60mm
or 76mm ducting. In the case of multi-outlet installations,
the first outlet is an open outlet with directional control
and the rest are closable and are used in conjunction with
the appropriate sized plastic Y branches. Marine applications
feature an attractive polished stainless steel through hull
fitting which accepts the stainless steel pipes for the
flue outlet and the combustion air inlet. Extra ducting
and stainless steel bulkhead mounting brackets are also
part of the marine fitting kits.
Economy
The chart below reflects the consumption of gas if the heater
was running continuously. In reality, both heaters have
similar very high efficiency ratings, so the overall gas
consumption will be about the same because the HS2800 will
be running for a shorter period of time before the thermostat
switches it off.
|
HS2000 |
HS2800 |
| Average
Consumption |
142
grams/hour |
225
grams/hour |
3.9kg
propane cyclinder |
27.5
hours |
17.5
hours |
4.5kg
butane |
31.7
hours |
20.0
hours |
13kg
propane |
91.5
hours |
58.0
hours |
15kg
butane |
105.6
hours |
67.0
hours |
19kg
butane |
133.80
hours |
84.5
hours |
47kg
butane |
331.0
hours |
209.0
hours |
904
Camping gaz (1.81kg) |
12.75
hours |
8.0
hours |
907
Camping gaz (2.72kg) |
19.0
hours |
12.0
hours |
Propex
Heatsource HS2000 |
| Heat
input: 2.1 kW
Heat output: 1.9 kW
Voltage: 12V or (24V versions to
order)
Current consumption: 1.4A continuous
running
Air throughput: 60 C.F.M
Fuel: Butane or Propane Gas
These
Propex heater kits just need a gas supply and 12 volt.
Includes:
- The
Heatsource Unit (single or twin)
- Caraflex
vehicle hot air ducting
- Hot
air outlets with directional control
- Flexible
stainless steel flue pipe
from
£429 each
 Download
the Propex
Heatsource HS2000 Installation and Operation Manual
(pdf format)
|
|
Propex
Heatsource HS2800 |
| Heat
input: 3.0 kW
Heat output: 2.8 kW
Voltage: 12V or 24V versions
Current consumption: 1.9A continuous
running
Air throughput: 85 C.F.M
Fuel: Butane or Propane Gas
These
Propex heater kits just need a gas supply and 12 volt.
Includes:
- The
Heatsource Unit (single or twin)
- Caraflex
vehicle hot air ducting
- Hot
air outlets with directional control
- Flexible
stainless steel flue pipe
Single
outlet kit £525.00
Twin outlet kit £559.00
|
|
NEW

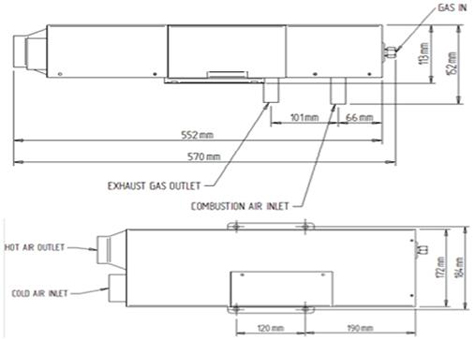

Propex Heatsource HS2000E
The
HS2000E heater is an automatic thermostatically
controlled blown air heating system fuelled by propane/butane
gas or 230V mains electric.
Applications
Propex Heatsource blown air systems are used in many applications
throughout the world, these include Motorhomes, Caravans,
Boats, Cranes, Horseboxes, Trucks, RV’s etc.
Control
The HS2000E is supplied as standard with a solid state electronic
thermostat which automatically switches the unit on and
off to maintain the desired temperature. When the room temperature
drops below the selected level, the Heatsource will automatically
ignite and run until the cabin reaches the selected temperature.
The thermostat is an easy to fit surface mount design and
integrates with the new electronics fitted to the HS2000E
heaters. Simple intuitive controls enable easy switching
between the gas and electric modes and a constant heater
feedback loop enable quick and easy system diagnose. Selectable
electric hook up power levels easily ensures you do not
over load your available supply.
Gas
Effeciency
With forced air combustion and the Propex two stage stainless
steel heat-exchanger, the HS2000E is a clean and highly
efficient way to heat your vehicle or boat. Air for combustion
is taken from outside your caravan or boat and passed into
the combustion chamber having been mixed with gas during
three aeration stages, it is ignited automatically and heats
up the large surface area of the heat-exchanger. The Heatsource
units are totally room sealed and exhaust all products of
combustion externally through the neat 22mm i.d. stainless
steels flue pipe. To add to the efficiency, cabin air is
normally re-circulated in preference to using cold air from
outside. The HS series heaters are also very efficient on
12 volt electrical current consumption drawing less than
1.7 amps on gas operation or 2.2 amps during mains electric
operation.
Mains
Electric
For those using a mains hook up there is the option of using
the powerful electric element with efficient heat exchanger
built in. Three settings are available giving 500W, 1 KW
or 2 KW of heat output and drawing a maximum current of
9 Amps. The motor speed is altered to suit each power level
to ensure maximum efficiency or, when on low 500w setting
keeping motor and air noise to a minimum for night time
running. The heater is supplied with a mains cable and moulded
3 pin plug.
Installation
The HS2000E can be supplied with complete fitting kits to
suit either vehicle or marine applications. In vehicles
and caravans the unit is usually mounted in a bed-box or
cupboard, flued downwards through the floor and out to the
side of the vehicle using flexible stainless ducting. These
ducts (22mm i.d. for the HS2000E) are supplied as standard
in lengths of 750mm for vehicles and 1 metre for boats.
The ends are finished with neat stainless steel end-caps
which comply with EN624. The heat is ducted to one or more
outlets through tough highly flexible 60mm ducting. In the
case of multi-outlet installations, the first outlet is
an open outlet with directional control and the rest are
closable and are used in conjunction with the appropriate
sized plastic Y-branches. Marine applications feature an
attractive polished stainless steel through hull fitting
which accepts the stainless steel pipes for the flue outlet
and the combustion air inlet. Extra ducting and stainless
steel bulkhead mounting brackets are also part of the marine
fitting kits.
For
consumption details please refer to the HS2000 above.
NEW
Propex Heatsource HS2000E |
| Available
in single, twin or triple vehicle outlet kits. Includes:
- Heatsource
unit
- Caraflex
vehicle hot air ducting
- Hot
air outlets with directional control
- Flexible
stainless steel flue pipe
Single
outlet vehicle kit £629.99
Twin outlet vehicle kit £659.99
Triple outlet vehicle kit £689.99
|
|
Truma
E2400 Blown Air Heater
The
Trumatic E2400 heater is both compact and flexible. The
unit is discrete and requires very little space to be fitted
but at the same time gives you 2,400 W of heating power.
This heater can be installed in practically any position
and is 100% automatically operated thanks to the electronic
control unit (included). All this taken into consideration
makes the Truma E2400 a perfect, reliable and safe heater
for small camper vans
Included
with this heater is a thermostat, control panel, 4m cable
and a mounting kit; variants with a 10m cable, 24V or with
a special control panel for installation in existing cut-outs
on request.
Trumatic
E2400 Blown Air Heater |
Key
Features include:
•
Maintenance free operation
• Low electricity consumption
• Flexible installation positions
• Ideal as auxiliary heater
• Electronic control unit
• Also available for use with natural gas
Part
Number and Technical data:
37111-01
– Trumatic E 2400, 30 mbar, 12V
Rated
Thermal output 2400 W
Air flow rate 49 / 78 m3/h
Gas consumption Partial load 100 g/h
Full load 200 g/h
Current input 0.6/ 1.1A
Rest current 0.01 A
Weight 4.7KG
Product Ident. Number CE0085AO0008
|
|
Webasto Airtop 2000S (Diesel-fired Blown Air Heater) |
Webasto Airtop 2000S air heater is suitable for motorhome conversions only. The heater uses the vehicles own fuel system via a contained burner / heat exchanger. An air fan blows ducted air into the area requiring heat. The system can provide boost heating to the cabin area or supply warm air into a living area / sleeping quarters via a ducted system. The universal heater kit contains everything required for installation except ducting pipe work which is available in either 1 or 2 outlet packages. 12/24v
Dimensions: 317mm x 120mm x 121mm
£999.99
|
|
Truma
Convection Heaters
Developed
over 35 years ago, the Truma S Series of caravan heater
is today installed as standard by the majority of caravan
manufacturers, and because it is so energy efficient and
incredibly easy to fit, it is the number one retrofit choice
too!
There's
a solution for most sizes of caravan, and the extremely
efficient Ultraheat which offers a welcome boost to your
heating system in extreme weather conditions.
Within
the S Series Heating range, choose between the Trumatic
S3002, with 3,400 W of heating power, suitable for most
medium-sized caravans, and the Trumatic S5002, with a massive
5,500 W od heating power make it the perfect choice for
large caravans, motorhomes and mobile homes.
In
the absense of electricity, the S Series Trumatic S3002
/ S5002 can still be operated without the fan. Warm air
is distributed by the extensive Truma warm air system. High
efficiency for low gas consumption
Truma
S3002 Heater |
Perfect
for use in caravans, the S3002 Heater range is fitted
to virtually all caravans. All leading manufacturers
in the UK and throughout Europe have supported and
fitted this very popular product for over 5 decades.
Also available as a retro-fitted product, the S3002
has a range of options and accessories available with
it, for example, the Ultraheat and TEB 2 Fan. Predomintaly
a very highly efficient but low gas consuming fire,
the S3002 is today commonly used with an Ultraheat
electrical element as so many campsites now come with
electrical hook up. To best suit your caravan, the
S3002 has a variety of different front cases to choose
from and its modern curved design contributes to the
homely feel of your pride and joy. This includes a
flame effect option to give a wood burning look and
sound effect.
Technical
Data:
Rated
thermal output: 3400 W
Gas consumption: 30 - 280 g/h
Weight: 9.8 KG
Product Ident. Number: CE-0085AP0325
Operation
is only authorised with an original Truma front case.
Sold seperately
You
will need to purchase a Heater, a case and a flue
kit.
|
|
Catalytic
Heaters
| 350852
- Route 2000 Minicat Heater |
-
Flueless
catalytic heater
-
Output
up to 3400 BTU 1Kw
-
Adjustable
output
-
Freestanding
or wall mounted
-
Flame
failure safety device
-
Height
34cm, width 23cm, depth 8cm
-
Regulator
and hose optional extra
£149.99
|
|
| 351936
- Route 2000 Midicat Heater |
-
Flueless
catalytic heater
-
Output
up to 6000 BTU 1.7Kw
-
Adjustable
output
-
Freestanding
or wall mounted
-
Flame
failure safety device
-
Height
42cm, width 32cm, depth 8cm
-
Regulator
and hose optional extra
£164.99
|
|
| 034810
- Sunny Heater 1Kw Butane/Propane |
-
Flueless
catalytic heater
-
Flame
failure safety device
-
Feet
for stability
-
Height
20cm, width 37cm, depth 7.5cm
-
Regulator
and hose optional
£87.99
|
|
| 359679
- Royal Calor Gas Portable Cabinet Heater |
A
matt black LPG radiant mobile gas cabinet heater.
-
3
heat settings 1.5Kw min to 4.2 Kw max
-
-
-
-
-
Castors
for easy movement
-
Fitted
with 21mm clip-on butane regulator
-
-
|
|
